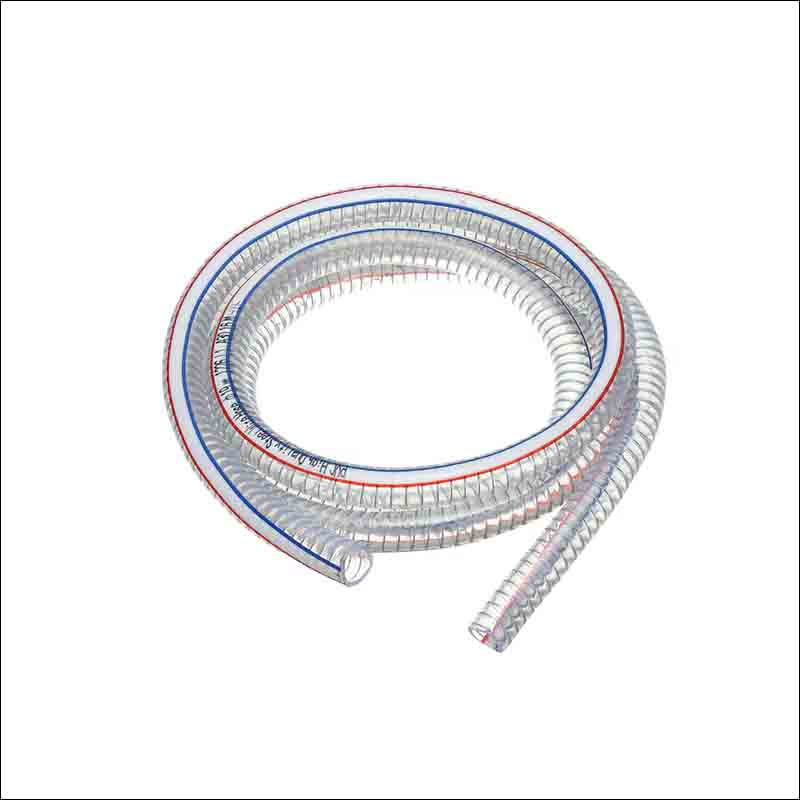

Flexible Suction Hose Buying Guide: How to Choose the Right Reinforced PVC Steel Spring Hose
Also known as a reinforced PVC steel spring hose in many markets, this product combines flexibility with strong reinforcement, making it suitable for demanding working environments. So selecting the correct hose is essential for ensuring safe and efficient fluid transfer. In many industries, a flexible suction hose is required to handle applications involving water, liquids, and materials that need suction performance.
Standard Specification
| PVC STEEL WIRE REINFORCED SPRING HOSE | ||||
| Construction: 3 layers | ||||
| Inner layer material: PVC | ||||
| Reinforcement: galvanized steel wire | ||||
| Outer layer material: PVC with UV-resist | ||||
| Color: Transparent, green, clear with colorful stripes | ||||
| Working temperature: -10℃~+60℃ | ||||
| Dimensional tolerances: Thickness +-0.2mm Length: +-10cm | ||||
| Packing: Label + Plastic film | ||||
| Inner Diameter | Length | W.P. | B.P. | |
| (inches) | (mm) | (meter) | (bar) | (bar) |
| 1/2” | 12 | 100 | 6 | 18 |
| 5/8” | 15 | 100 | 6 | 18 |
| 3/4” | 19 | 50 | 5 | 15 |
| 1” | 25 | 50 | 5 | 15 |
| 1-1/4” | 32 | 50 | 5 | 15 |
| 1-1/2” | 38 | 50 | 4 | 12 |
| 2” | 50 | 50 | 4 | 12 |
| 2-1/2” | 64 | 30 | 4 | 12 |
| 3” | 75 | 30 | 3 | 9 |
| 4” | 102 | 30 | 3 | 9 |
| 5” | 127 | 20 | 2 | 6 |
| 6” | 153 | 20 | 2 | 6 |
| 8” | 200 | 10 | 2 | 6 |
Understand the Steel Wire Reinforcement

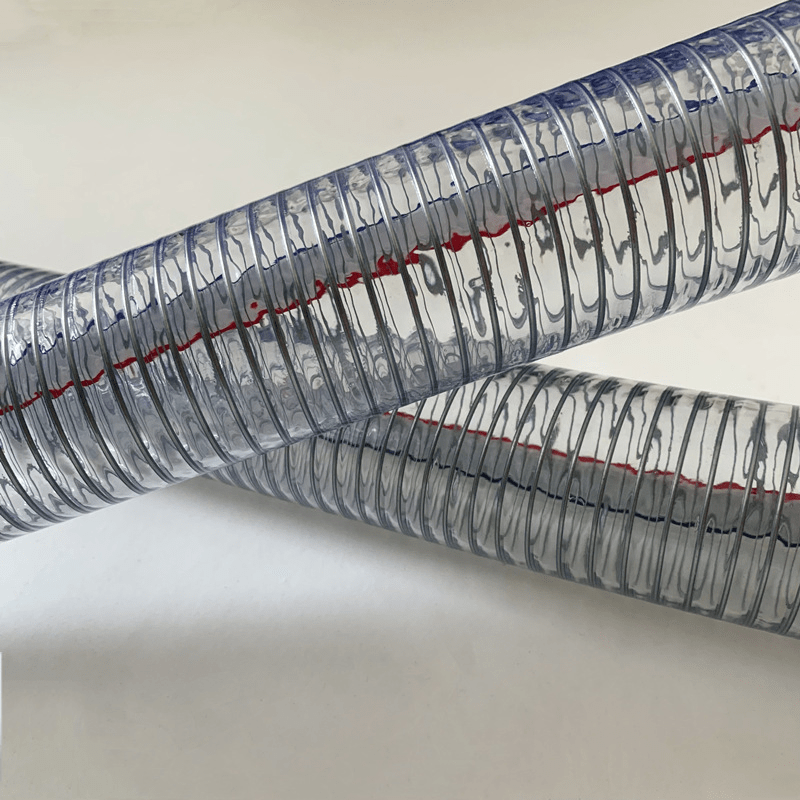

The most important feature of a flexible spring hose is the spiral steel wire embedded inside the PVC wall. This reinforcement provides excellent resistance against vacuum pressure and helps prevent the hose from collapsing during suction operations.
At the same time, the steel wire structure allows the hose to remain flexible, which makes installation easier in areas with limited working space.
Consider Application Requirements
This hose is widely used in agriculture, industrial water transfer, construction drainage, machinery systems, and chemical applications.
Before purchasing, users should evaluate several factors, including:
- Inner diameter requirements
- Working pressure
- Vacuum resistance
- Temperature range
- Type of transferred material
Choosing the correct specification ensures better efficiency and reduces potential operating problems.
Conclusion-Reinforced PVC Steel Spring Hose
A reinforced PVC steel spring hose offers an excellent combination of strength, flexibility, and durability. By understanding reinforcement structure, material quality, and application requirements, buyers can select the ideal hose solution for long-term industrial performance.
Looking for a reliable PVC hose manufacturer? Contact us for customized solutions and OEM supply.
