PVC Braided Hose Buying Guide for Multiple Applications

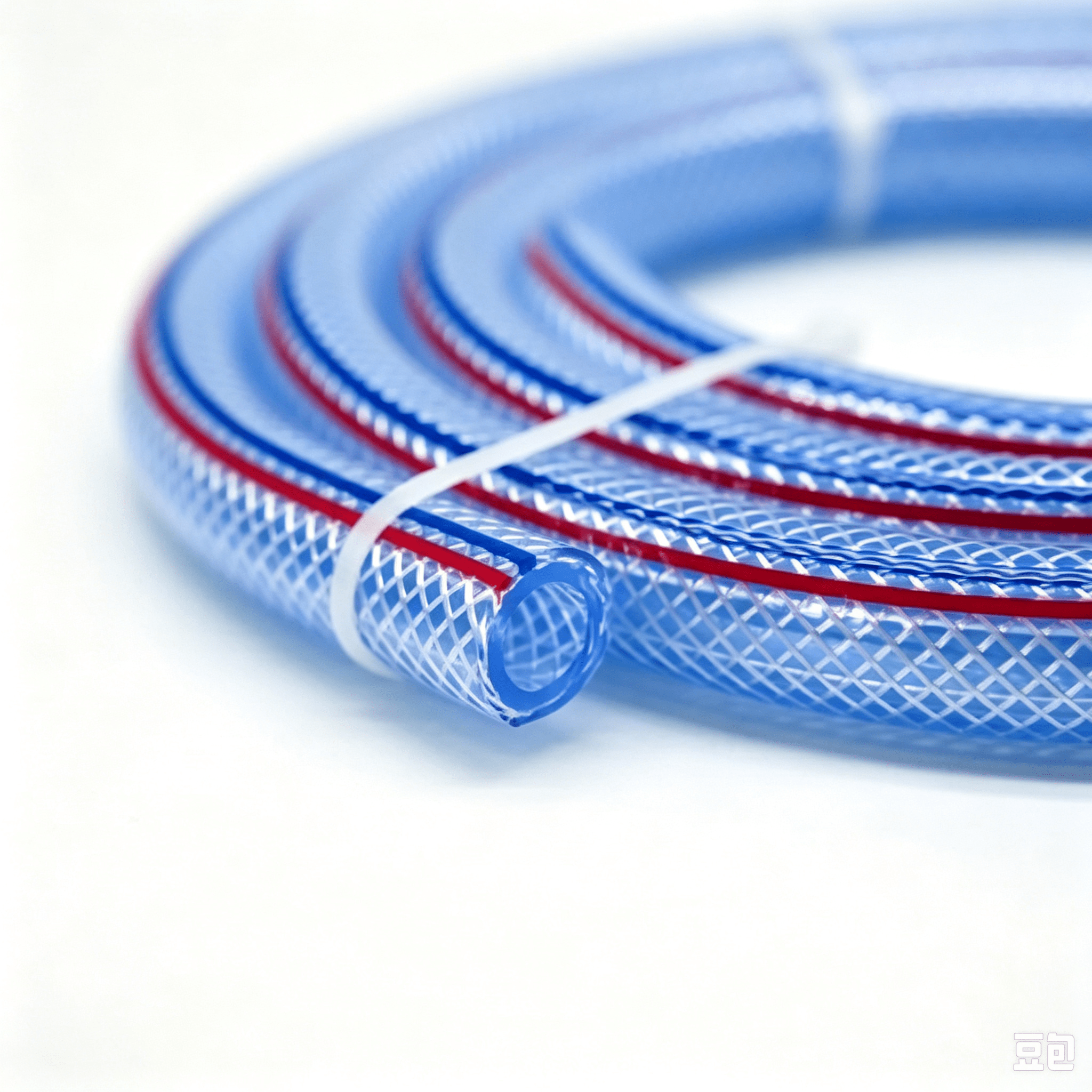

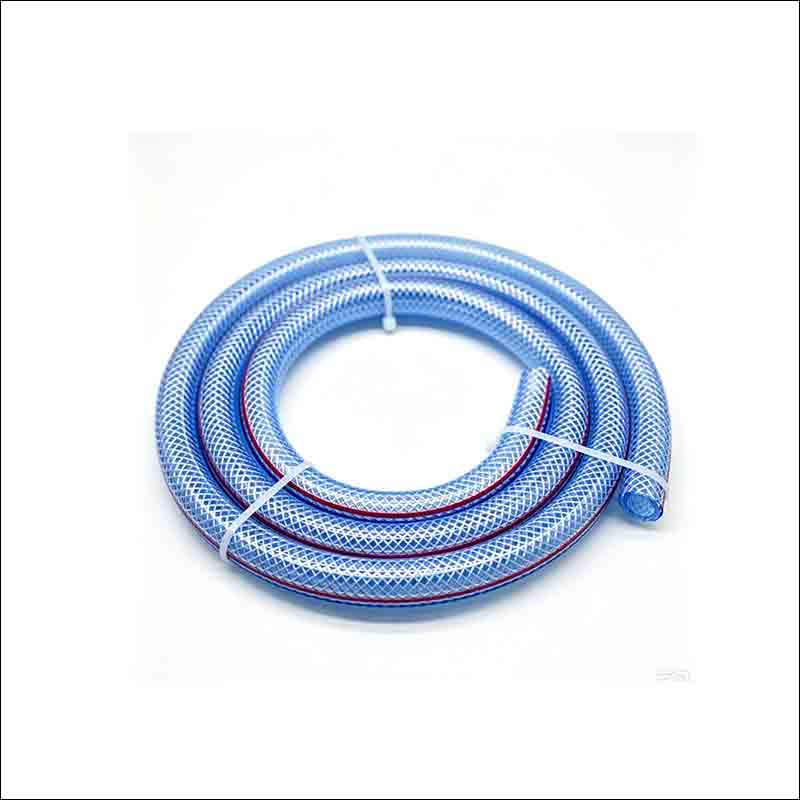

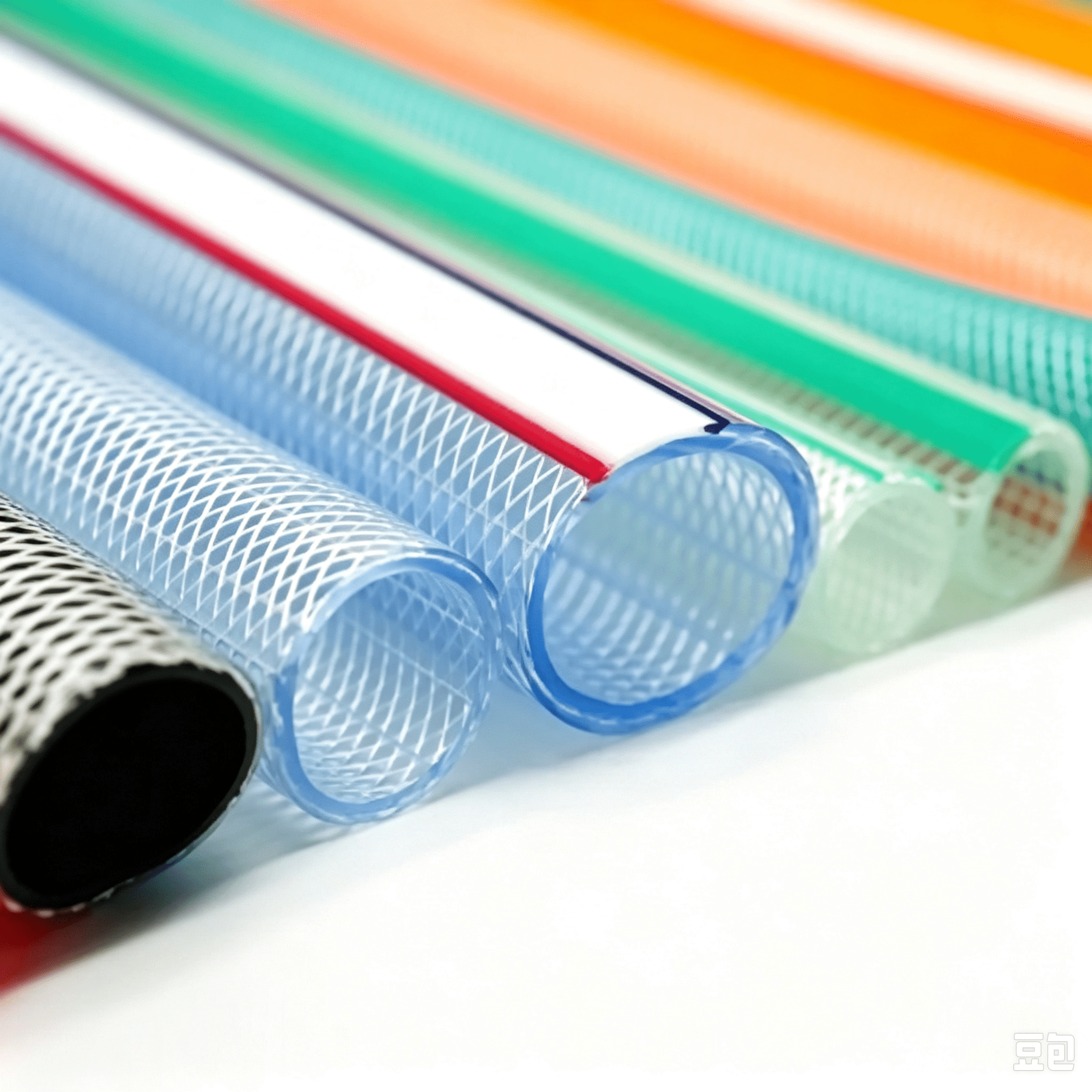

Choosing the right hose is an important decision for businesses that depend on stable fluid transfer performance. A reinforced PVC fiber braided hose is widely used in agriculture, industrial equipment, workshops, and commercial applications. Because it provides a good balance between flexibility, pressure resistance, and durability.
Standard Specification-Reinforced PVC Fiber Braided Hose
| PVC FIBER REINFORCED HOSE | ||||
| Construction: 3 layers | ||||
| Inner layer material: PVC | ||||
| Reinforcement: High strength polyester | ||||
| Outer layer material: PVC with UV-resist | ||||
| Color: Transparent, blue, green, clear with colorful stripes | ||||
| Working temperature: -10℃~+65℃ | ||||
| Dimensional tolerances: Thickness +-0.2mm Length: +-10cm | ||||
| Packing: Label + Plastic film | ||||
| Inner Diameter | Length | W.P. | B.P. | |
| (inches) | (mm) | (meter) | (bar) | (bar) |
| 1/5″ | 5 | 100 | 12 | 36 |
| 1/4″ | 6 | 100 | 12 | 36 |
| 5/16” | 8 | 100 | 12 | 36 |
| 3/8” | 9 | 100 | 12 | 36 |
| 1/2” | 12 | 100 | 12 | 36 |
| 5/8” | 15 | 50 | 12 | 36 |
| 3/4” | 19 | 50 | 10 | 30 |
| 1” | 25 | 50 | 10 | 30 |
| 1-1/4” | 32 | 50 | 8 | 24 |
| 1-1/2” | 38 | 50 | 7 | 21 |
| 2” | 50 | 50 | 5 | 15 |
Check the Working Pressure
The first factor buyers should consider is working pressure. Different applications require different pressure capabilities, so selecting an unsuitable hose may affect performance and safety.
A reinforced PVC braided hose is designed with polyester yarn reinforcement, which improves pressure resistance while maintaining flexibility during operation.
Evaluate Material Quality
The quality of PVC materials plays an important role in hose performance. Premium hoses are usually manufactured with high-quality PVC, which provides better flexibility, transparency, and resistance to aging.
Moreover, stable material quality helps maintain consistent performance during long-term use, especially in professional applications where reliability is essential.
Understand the Reinforcement Structure
The braided reinforcement layer is the core component that gives the hose additional strength. A well-designed polyester braid helps the hose withstand pressure changes while preventing deformation.
As a result, high-quality PVC braided hoses can provide reliable service in various working environments.
Match the Hose to Your Application
PVC braided hoses are suitable for many applications, including:
- Water supply systems
- Air transfer
- Agricultural irrigation
- Industrial equipment
- General fluid transportation
Before purchasing, buyers should confirm the required diameter, length, working temperature, and media compatibility.
A reinforced PVC fiber braided hose is a versatile and reliable solution for many fluid transfer applications. By considering pressure requirements, material quality, reinforcement structure, and application conditions, buyers can choose a hose that delivers long-term value.
Partner with a professional PVC braided hose supplier for reliable quality and customized solutions.
